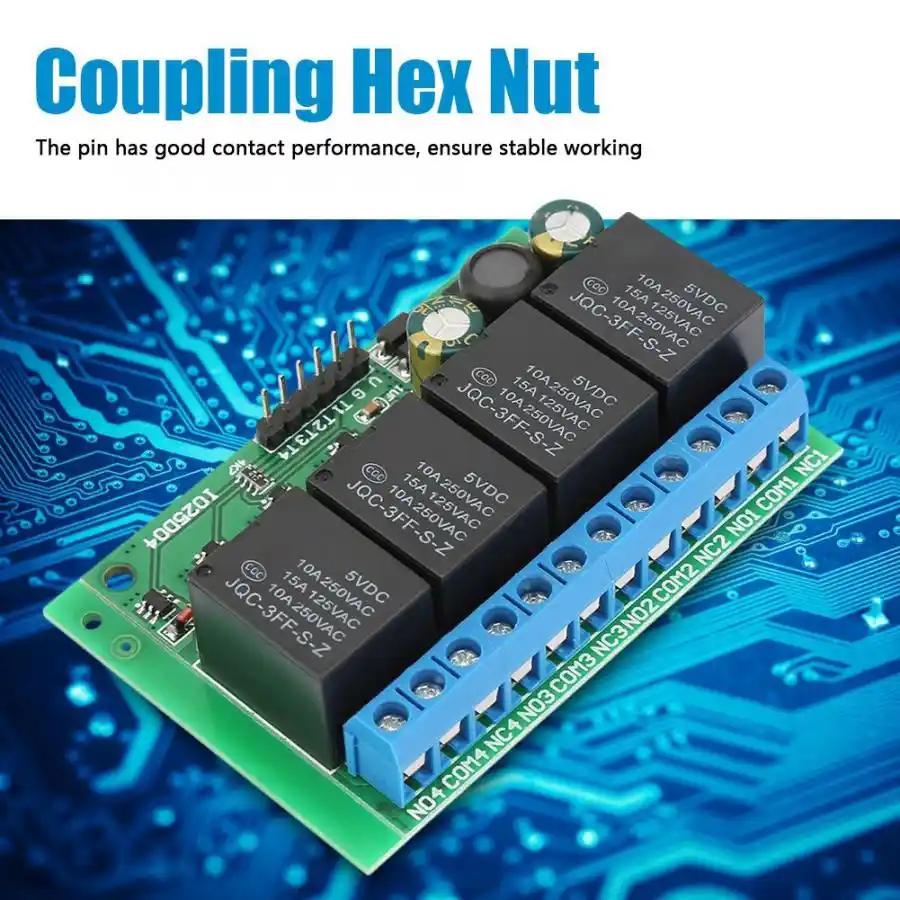

Relay Module 4 Channel Flip-Flop DC 12V Bistable Self-locking Relay Module Low Pulse Trigger Relay 6-24VDC

Relay Module, 4 Channel Flip-Flop DC 12V Bistable Self-locking Relay Module Low Pulse Trigger Relay 6-24VDC: Business, Industry & Science. Relay Module, 4 Channel Flip-Flop DC 12V Bistable Self-locking Relay Module Low Pulse Trigger Relay 6-24VDC: Business, Industry & Science. ★Working voltage: DC 6-24V; Working current(12V): 1 relay 37MA;2 relay 73 MA; 3 relay 110MA; 4 relay 146 MA; Standby current(12V): 2mA; Load current: AC 250V / 10A, DC 30V / 10A 。 ★MODULE INTERFACE:1. VCC: positive power supply (VCC) 2. GND: negative power supply (GND) 3. T : Low pulse trigger; RELAY OUTPUTS:1. NO: normally open relay interface 2. COM: Common Interface Relays 3. NC: normally closed relay interface 。 ★USE 1: By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on. 。 ★USE 2: By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on. 。 ★TYPICAL APPLICATIONS: Automotive electronics, Motor, LED, Smart Home, Emergency lighting, MCU development board 。 Features:。 1. 100% brand new and high quality。 2. Small body and stable performance。 3. The pin has good contact performance, ensure stable working。 4. This is a four channels self-locking relay module.。 5. Suitable for automotive, electronic motor, smart home, emergency lighting, microcontroller, development board and toy car。 。 Specification:。 Condition: 100% Brand New。 Working Voltage: 6-24VDC。 Load Current: 250VAC/10A, 30VDC/10A。 Trigger Mode: Low Pulse Trigger。 Weight: Approx. 72g / 2.5oz。 。 Package List:。 1 * Relay Module。 。 。 。
